Polyester Silicone Tape

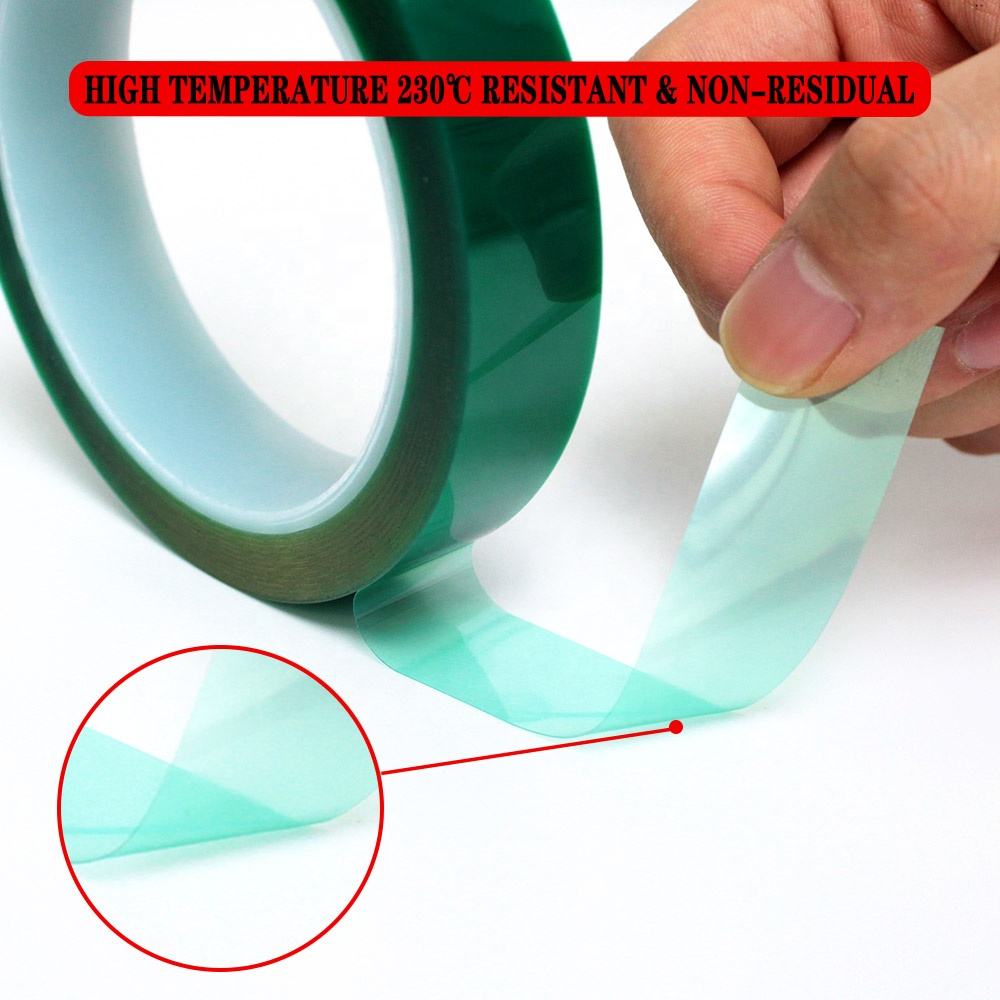

Made from polyester film with single side coated silicone adhesive, it is used in applications at temperatures as high as 230°C and won’t leave glue and color.

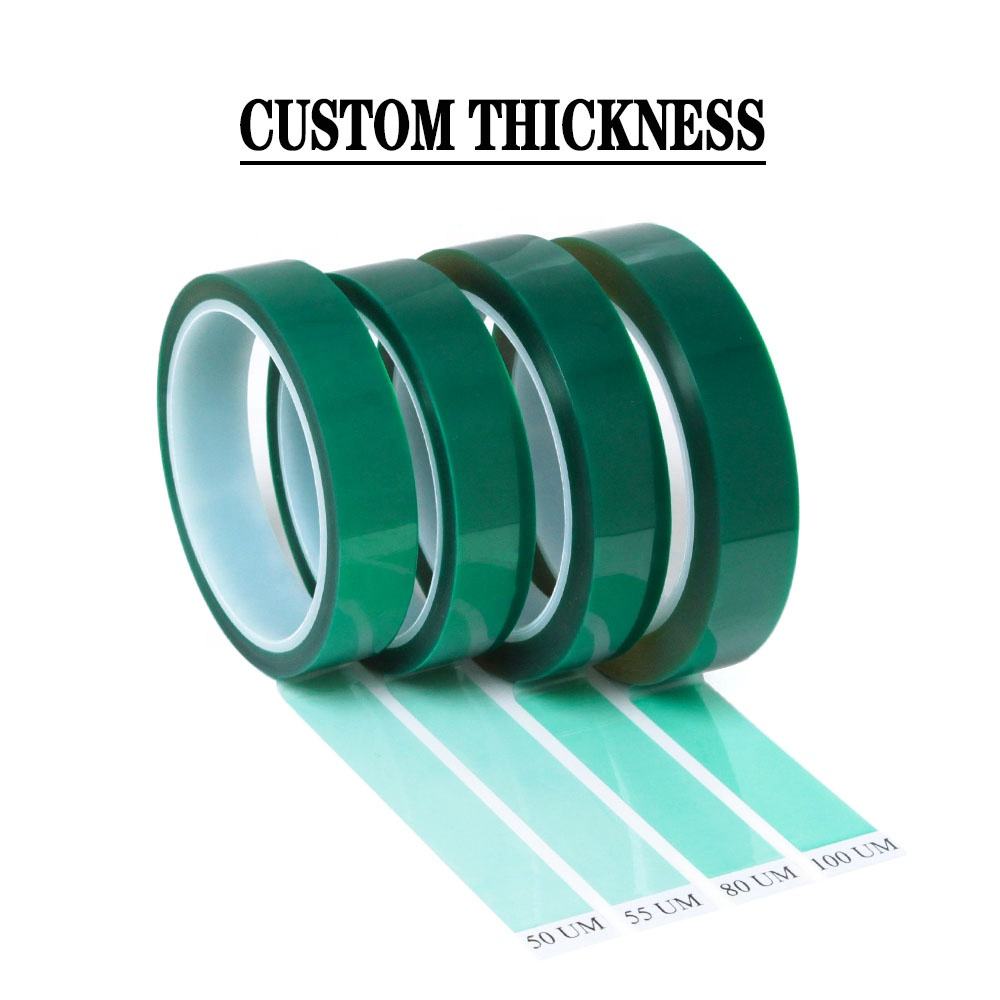

– Thickness (mm): 0.04 | 0.045 | 0.05 | 0.055 | 0.06 | 0.065 | 0.07 | 0.075 | 0.08 | 0.085 | 0.09 | 0.1 | 0.13 | 0.15 | 0.18 | Custom

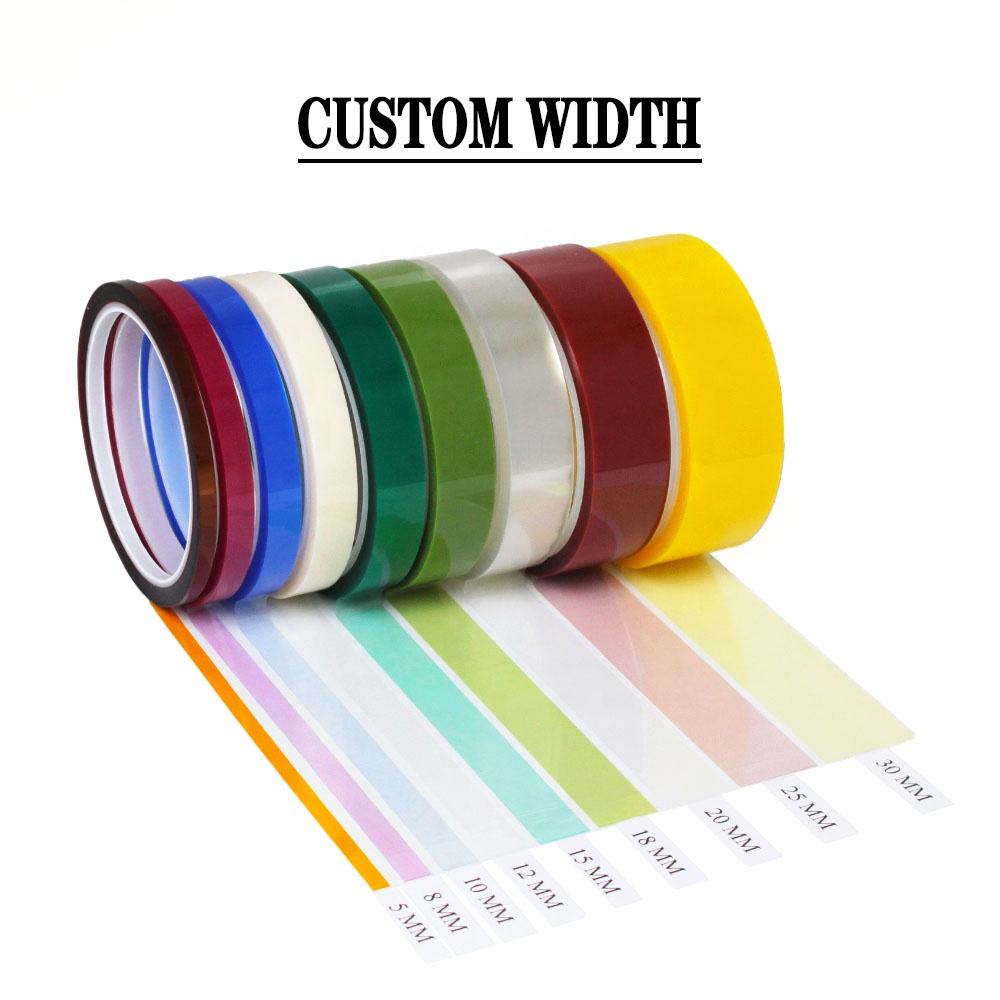

– Width (mm): From 1mm to 1070mm | Custom

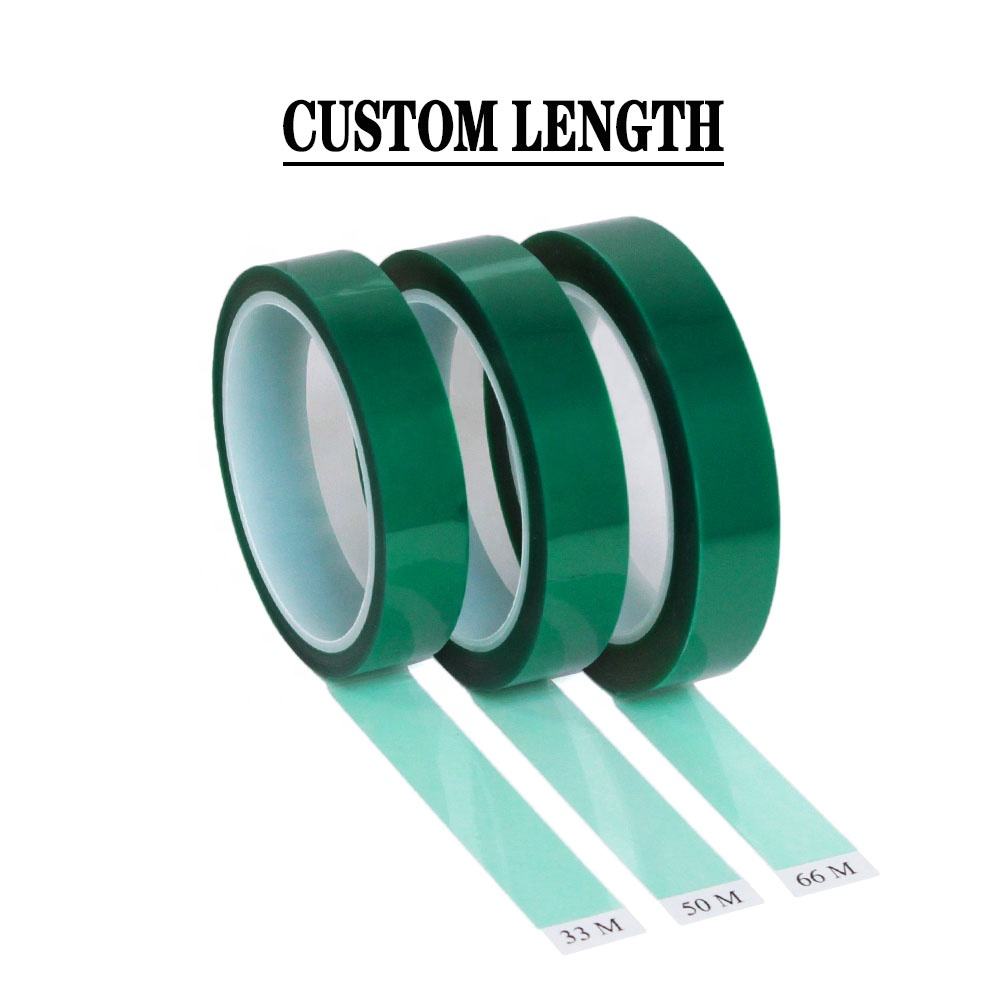

– Length (m): 33 | 50 | 66 | 100 | Custom

– Core Diameter(mm): 25 | 32 | 38 | 76 | Custom

– Packing Term: Label | OPP Bag | PVC Box | Carton | Custom

– Related Process: +Release Liner | Die Cutting | Custom

Kindly Note: Log roll and Jumbo roll are available.

Polyester Silicone Tape Description

Polyester silicone tape is a high temperature resistant adhesive tape made from a polyester film that is coated with a silicone adhesive. Polyester silicone tape is widely used in industries such as electronics, aerospace, automotive, and manufacturing. OEM & ODM service to each customer.

Polyester Silicone Tape Features:

Excellent thermal and electrical insulation properties
Suitable for use in high-temperature environments.
Withstand temperature range up to 230°C without losing its properties or adhesive strength.
Good chemical resistance.
Resistant to most solvents, acids, and oils.

Polyester Silicone Tape Application:

Here are some common applications of polyester silicone tape include:

Powder coating: It is commonly used in powder coating applications to mask off areas that should not be coated. It is resistant to high temperatures and can withstand the curing process without leaving any residue.
Electronics: It is often used in electronic manufacturing and repair applications to mask off delicate components during soldering, painting or spraying.
Automotive: It is used in the automotive industry for masking off areas that need to be protected from paint or other chemicals during the painting or repair process.
Sign making: It is often used in sign making applications to mask off certain areas of a sign during the painting or printing process.
PCB manufacturing: It is used in the manufacturing of printed circuit boards (PCBs) to mask off areas that should not be etched or plated.
Epoxy resin: It is often used with epoxy resin, good hold, easy to peel off.
General industrial applications: It is used in a wide range of general industrial applications for masking off areas during painting, powder coating or other finishing processes.

Polyester Silicone Tape Model List

Product Number:	Film Thickness:	Total Thickness:
XH-2540PST	25 microns	40 microns
XH-2545PST	25 microns	45 microns
XH-2550PST	25 microns	50 microns
XH-3850PST	38 microns	50 microns
XH-2555PST	25 microns	55 microns
XH-3855PST	38 microns	55 microns
XH-2560PST	25 microns	60 microns
XH-3860PST	38 microns	60 microns
XH-2565PST	25 microns	65 microns
XH-3865PST	38 microns	65 microns
XH-2570PST	25 microns	70 microns
XH-3870PST	38 microns	70 microns
XH-5070PST	50 microns	70 microns
XH-6070PST	60 microns	70 microns
XH-5075PST	50 microns	75 microns
XH-6075PST	60 microns	75 microns
XH-5080PST	50 microns	80 microns
XH-6080PST	60 microns	80 microns
XH-5085PST	50 microns	85 microns
XH-6085PST	60 microns	85 microns
XH-5090PST	50 microns	90 microns
XH-6090PST	60 microns	90 microns
XH-50100PST	50 microns	100 microns
XH-75100PST	75 microns	100 microns
XH-100130PST	100 microns	130 microns
XH-125150PST	125 microns	150 microns
XH-150180PST	150 microns	180 microns

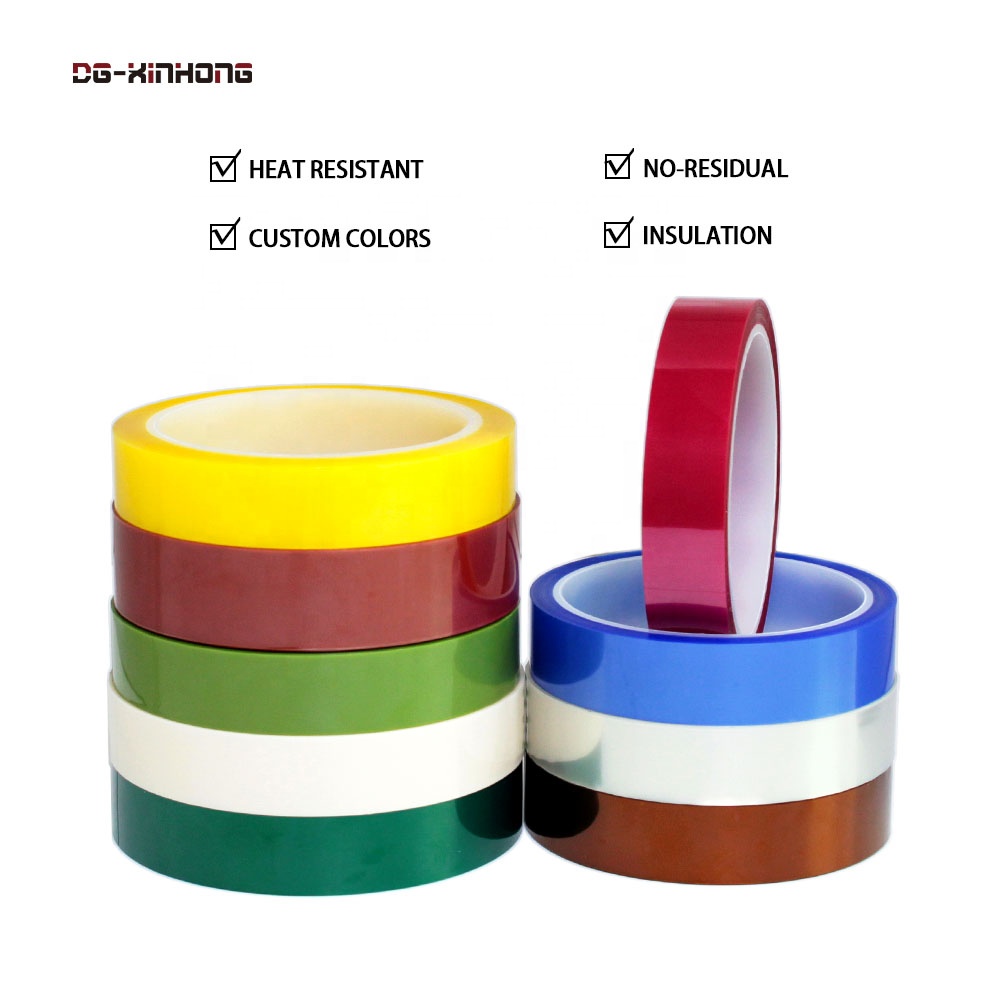

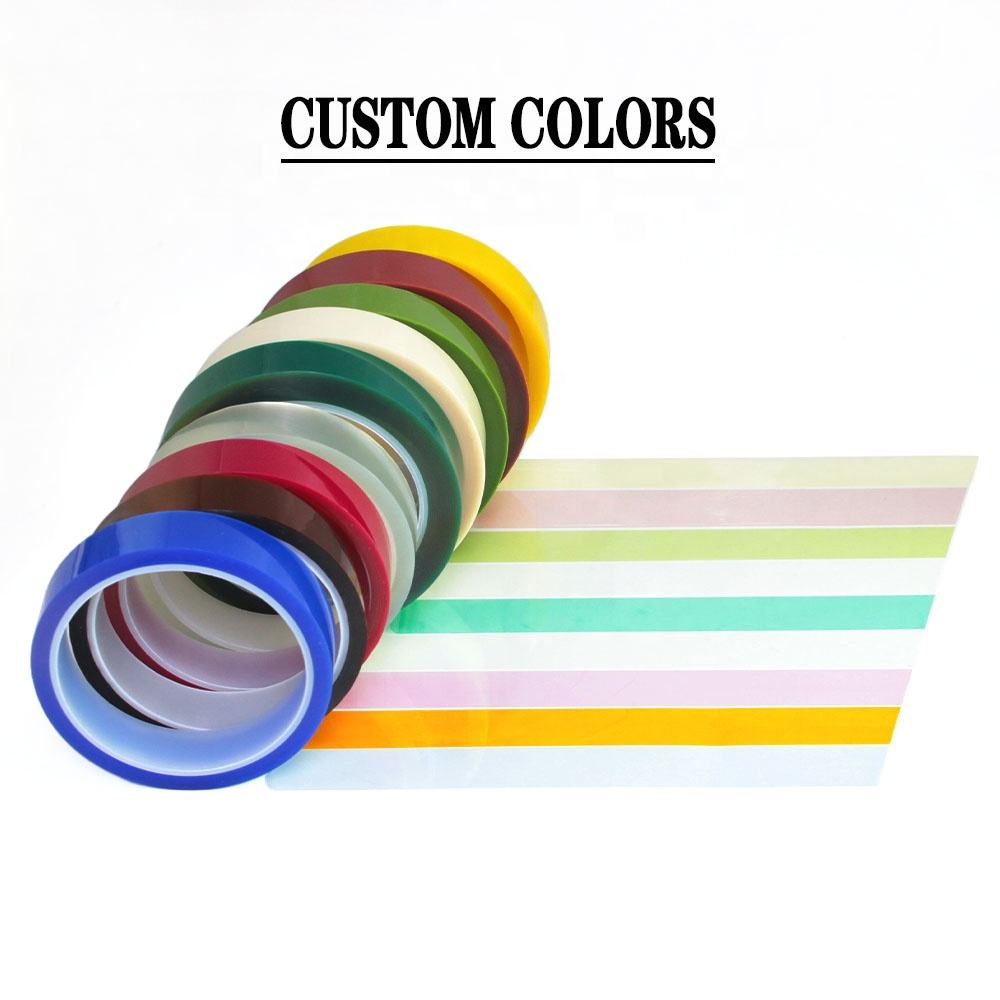

Polyester Silicone Tape Actual Product

Why Choose Us

16 years of adhesive tape production experience.
Large number of customers
Fast transportation channels.
Provide quality assurance services
Quality problem, free return.

The Most important thing is that we always focus on becoming the world’s top adhesive tape manufacturer, the quality of our products is perfectly equal to that of 3M/Tesa brands.
